WPC Dot Matrix Controller Board Repair

So, the components arrived for the down Dot Matrix Controller board that originally came out of a Party Zone. It was missing +62VDC which causes the display to come up as completely blank.

Since Party Zone is a location game and down time is money to the owner, I sold him my working Dot Matrix Controller board out of my Fish Tales and just dealt with one down game for a few days. Believe it or not, though I do a lot of repairing, I don’t play my games that much.

With parts in hand, we look at the components that make up the +62 VDC circuit, which are the following:
Fuse F601 (this tested fine, not of concern in this repair)
Bridge Rectifier BR1 (tested fine with DMM on diode/volts test, no need to replace)
Filter Capacitor C4 (220uF, 160V)
Bleeder Resistor R12 (47ohm, 1 watt)
Resistors R3 – (47ohm, 1 watt) R4 (120ohm, 1 watt) and R11 (cement 120ohm, 5 watt)
Transistors Q2 (2N5551), Q3 (MPE15030) and Q10 (5401)
Zener Diode D3 (1N4759A)
Capacitor C6

Since our fuse and BR1 tested fine with a DMM, those were not touched. Resistor R11 tested fine in circuit with the DMM as well, so I also left it alone. The components I replaced in this repair which tend to be the most possible suspects were: Resistors R3, R4 and R12; Transistors Q2 and Q3; Zener Diode D3; and I decided to replace the Capacitor C4 since I had it on hand.

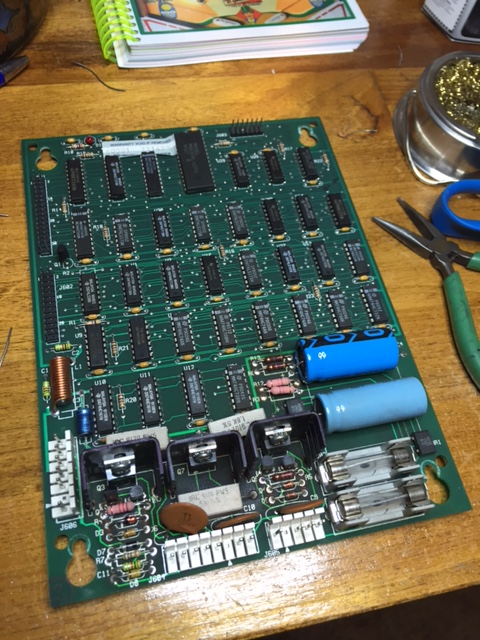

Replaced components on the Dot Matrix Controller board on bench.

Replaced components on the Dot Matrix Controller board on bench.

One of those components ended up being our faulty issue, as once the board was popped back in game, Fish Tales came alive.

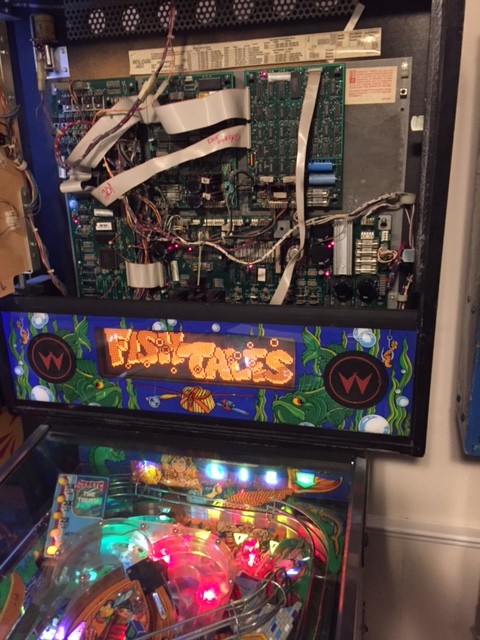

Working DMD in Fish Tales after repair to DMD Controller board.

Working DMD in Fish Tales after repair to DMD Controller board.
