1978 Bally Silverball Mania Repair

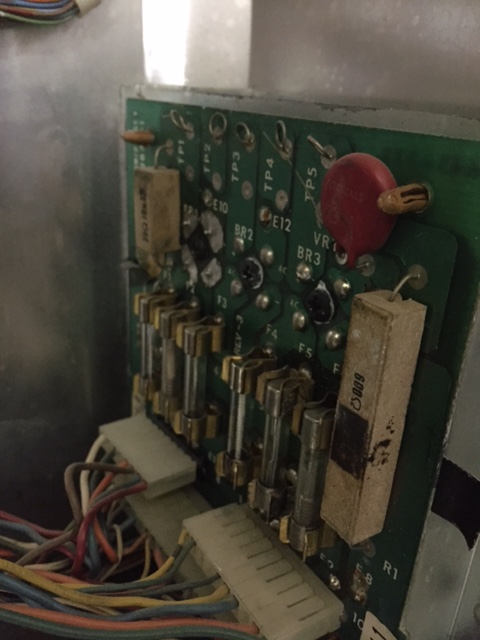

Fuse F4 is the solenoid fuse in the Bally Power Boards.

Fuse F4 is the solenoid fuse in the Bally Power Boards.

Got a call for a non-booting Silverball Mania. I figured I’d be in for the typical corrosion damage on the MPU repair, as this one had had some at one point but had been neutralized and repaired in the past.

Turns out, it wasn’t a locked on MPU or corrosion as the culprit. The MPU LED blinked six times, but never made its seventh flash which means the MPU wasn’t recognizing the +43VDC as present.

Several issues can cause this, but in this case it was a blown F4 fuse on the rectifier board. In case there was a short from the playfield or a shorted BR3, I plugged in my 3amp circuit breaker fuse first before replacing the blown fuse with a 5 amp slow blow to spec. This brought the seventh flash and allowed the game to boot.

This game was in great shape overall. Clean, bright displays and an upgraded board set with remote pack and bulletproofed solenoid driver board. I checked all the switches and solenoids to ensure proper operation and was off to the next call!

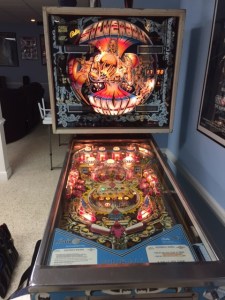

Silverball Mania back up and running with all seven flashes present on MPU.

Silverball Mania back up and running with all seven flashes present on MPU.
